功能介紹:
1)能精確測量血氧飽和度及脈搏:
2)能調節顯示方向
3)能設置血氧和心跳的報警限值
4)可以選擇測量提示音"BEEP"

顯示屏：彩色OLED螢幕，四種顯示方向
電源要求：兩粒AAA電池 1.5V鹹性電芯
電源消耗： 30mA(普通)

測量範圍：
血氧飽和度: 0至100%
誤差: 70~100%----- 2%
脈搏: 25-250bpm
誤差: 2bpm

適宜使用產品範圍：
指尖血氧儀可以用來測量人體的血氧飽和度，心率，通過手指。此產品適用於家庭，醫院（包括臨床使用內科 /外科手術，麻醉科，兒科，重症監護等）社區醫療，體育和身體護理等

產品配件：
一條掛繩,兩粒AAA電池,一份說明書

安裝電池方法：
將兩粒AAA電池安裝在電池盒內，留意正極／負極的方向

注意１：電池必須正確安裝，否則可能損壞產品
注意２：若長時間不使用該產品，請取出電池

外形尺寸
長：５８毫米 x 闊：３１毫米 x 高：２９毫米
總重量：５０Ｇ（連電池計算在內）

環境要求：
操作溫度： 5至40度
存儲溫度： -10至50度
環境濕度： 15%至80%(操作)，10%至95%(存儲)．
疑難解答：
用家不可自行維修血氧飽和度儀的部件。應由合資格人員拆除。
如果您不確定有關的任何測量的準確性，可使用其他方法檢查病人的生命體徵;然後確保血氧儀運行正常。

注意：不要噴、淋或任何液體灑在血氧飽和度儀上，其附件、連接器、開關或開口的外殼，因為這可能會損壞血氧飽和度儀。

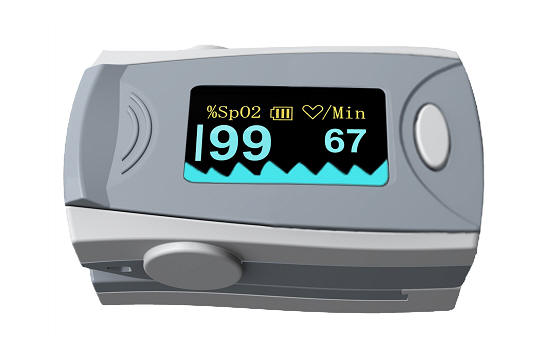

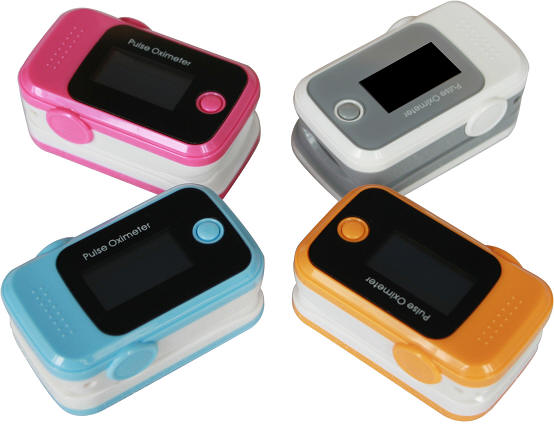

General description
The fingertip pulse oximeter, based on all digital technology, is intended for noninvasive spot-check measurement of functional oxygen saturation of arterial hemoglobin(SpO2). Advanced DSP algorithm can reduce the influence of motion artifact and improve the measurement accuracy during low perfusion.

Technical Parameters
Display Method: Color OLED display, 4 display directions.
Power Requirements: Two AAA size 1.5V Alkaline Battery
Power Consumption: 30mA(Normal)
Measurement performance in Low perfusion Condition: 0.3%

Measurement specifications:
SpO2
Measuring Range: 0-100%
Resolution: 1%
Accuracy: 70-100%, 2%
                 0-69%, unspecified
PR
Measuring Range: 25-250bpm
Resolution: 1bpm
Accuracy: 2bpm

Product Operation Scope
The fingertip Oximeter can be used to measure human Hemoglobin Saturation and heart rate through finger. The product is suitable for use in family, hospital (including clinical use in internist/surgery, Anesthesia, pediatrics, intensive care and etc.) Oxygen Bar, social medical organizations, physical care in sports and etc.
Remember: The product is not suitable to monitor patient continuously.

Product Accessories
One hang lace.
Two batteries.
One instruction manual.

Outline dimension
Length: 58mm
Width: 31mm
Height: 29mm
Weight: 50g( including two AAA batteries)

Environment requirements
Operation Temperature: 5-40C
Storage Temperature -10-50C
Ambient Humidity: 15%-80% in operation
                               10%-95% in storage
Warnning:
Do not spray, pour, or spill any liquid on the oximeter, its accessories, connectors, switches, or openings in the enclosure as this may damage the oximeter.
